JD hop tractors series 5R
Versions: 5090R - 5100R - 5115R - 5125R
SERIAL EQUIPMENT:
ENGINE: 4-Cylinder JOHN DEERE Power Tech PWX engine CommonRail, turbocharger, intercooler, Tier IIIB TPM power 100hp / 110hp / 120hp / 135p, displacement 4525 cc, exhaust below, diesel ONLY technology
TRANSMISSION: 32/16 Command8 with Auto and Eco function 40 km / h, right hand console, reversing on the steering wheel
PTO: 540 / 540E / 1000 starting modulation, PTO brake, rear PTO remote left and right
HYDRAULICS: Pressure and flow controlled system (PFC), electronic lower link control, hydraulic pump power l17 l / min., 2 DW (1x200, 1x450) control units, remote control for three-point left and right, adjustable lift strut left and right, lower link with quick coupler, top link with catch arm , Automatic stabilizer bar on the left with holder on the right, high-performance power lift 5300 kg, lifting cylinder 80mm

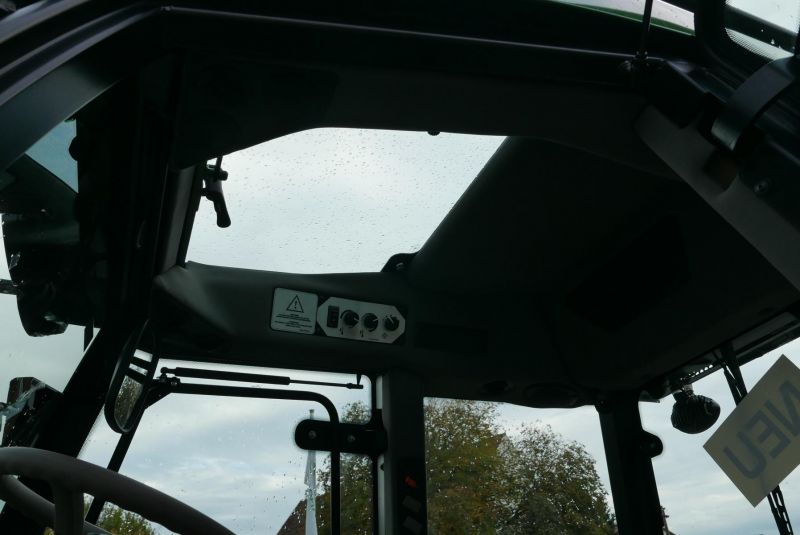

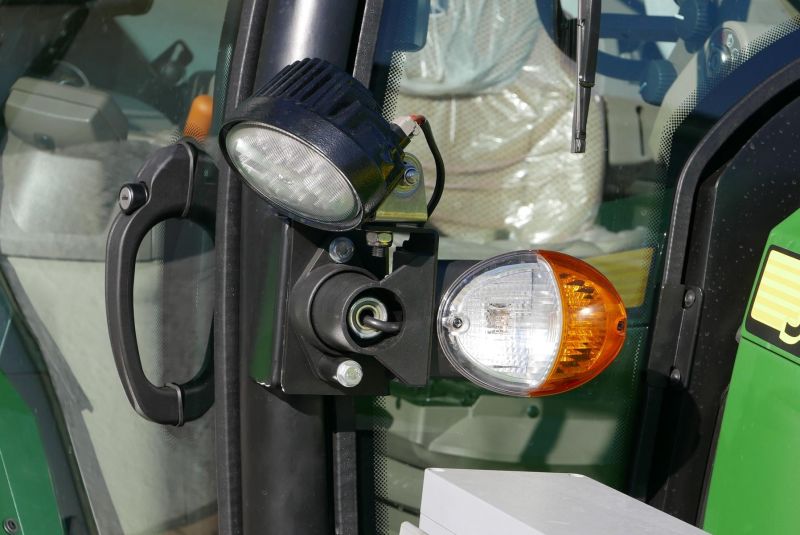

CABIN: premium hop cab, with mechanical cab suspension, original JD air conditioning and heating, spherical windows, panorama windscreen, frameless doors, without disturbing handrail. Perfect undisturbed view of the intermediate axle unit, rear wiper with wiper-washer, glass roof, vine deflector bar, 4 pieces LED work lights front, 1 piece right for intermediate axle unit, 2 pieces LED
Rear work light, front passenger seat, leather steering wheel, premium seat with low frequency air suspension and heater, automatic towbar 10 positions.
TIRES: 420 / 85R30 Mitas - 320 / 85R24 Mitas
Accessories: Transmission 32/16 Command 8 with creeper
CommandArm operation (el.
2 electrohydr. Stg. (CommandArm required)
3 electrohydr. Stg. (CommandArm required)
Tires 480 / 70R30 - 375 / 75R20 Mitas
Tires 420 / 85R34 - 340 / 85R24 Mitas
Tires 480 / 70R34 - 380 / 70R24 Mitas
Tires 540 / 65R34 - 440 / 65R24 Mitas
Tires 340 / 85R38 - 280 / 85R28 Mitas
Tires 420 / 85R38 - 340 / 85R28 Mitas
Tires 540 / 65R38 - 480 / 65R24 Mitas
Suspension front axle
2-circuit air brake system
3. Control unit (450)
Headland management iTEC Basic
Electric interaxle control unit with
3 functions, electr. Multi-function lever
Fronthydraulik
Front PTO
radio
